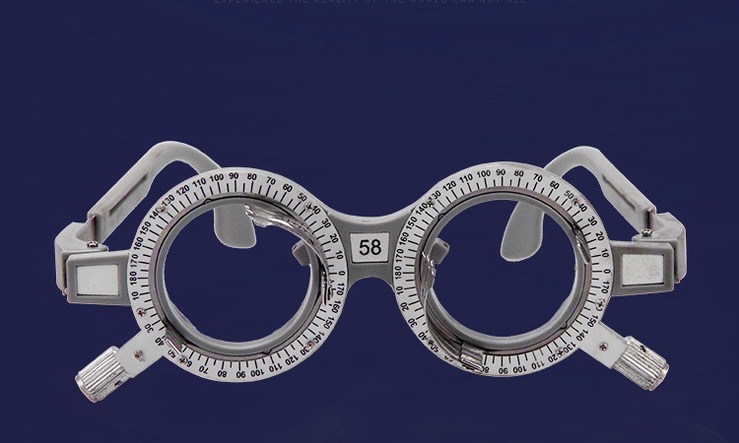

Universal optometrist trial frame WZ-YG004
WZ-YG004
Description
- Material: plastic, stainless steel, aluminum, silicone
- The distance from the axis of the lens holders to the axis of the frame: from 52 to 70 mm, the division value: 2 mm (optional)
- Rotation angle: from 0° to 180° (division value: 5°)
- Temple length adjustment: yes (90-99 mm)
- Rotation around the optical axis: 360° rotation
- Weight: 35 g
- Package size: 270 * 185 * 46 mm
- Package weight: 295 g
Описание
The frame is designed for the installation of astigmatic and stigmatic test eyeglass lenses, prisms, prism compensators, as well as filters, diaphragms and other optical elements. To determine the direction of astigmatism and squint, the frame is equipped with an angular scale. The rotation of lenses, prisms and other optical elements relative to the scale is carried out using a lens holder. The intercenter distance is changed separately, while the value is counted from the center of the nose in the range from 52 to 70 mm.
